At this point, the electrics need to be dealt with. To get the current from the wheel tyres to the axles I use 6th phosphor bronze wire - copper can be used, but it’s very soft, and is inclined to break when fitting the wheels to the axles. The two photos show, firstly shallow grooves cut into two of the spokes (opposite each other) to accommodate the wire, and to provide a slight bend into the axle hole (rather than a sharp right angle), and secondly one of the wires held in place with blu-tack whilst soldering to the tyre. The trick is to make sure that that tyre and the wire are clean, to use a little liquid flux, and a reasonably large iron (25W) to get the heat in quickly without damaging the plastic moulding. Virtually all of the locos I have built have used Sharman wheels, with fairly soft moulded centres, and I have not had any problems using just two wires. However, a more recent experience with Gibson wheels (which use a slightly harder compound) shows that these are not quite so forgiving, and the use of just two wires can cause ‘wheel wobble’ when fitted to the axles. Three wires at approximately 120deg seems to fix this problem.

The final task for the wheels is to cut the wire to length and remove all traces of flux and any excess solder from the back of the flange so that nothing catches on point blades and check rails etc.

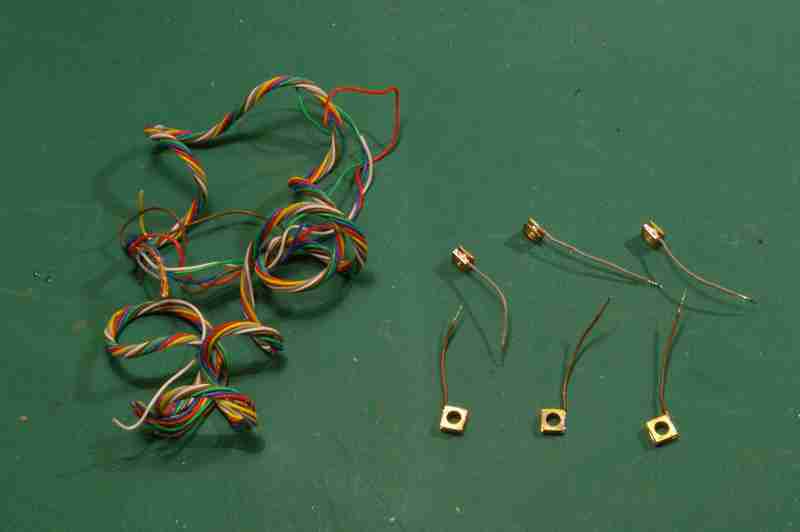

To get the current from the bearings to the frames, and from the frames to the motor, I use fine multi-strand wire - the photo illustrates some wire stripped out from an old telephone hand set.

The last stage is to re-assemble everything, complete with motor and gearbox assembly, for a trial run. If you’re confident enough on the work so far, it’s worth adding other detail to the chassis (firebox, guard irons, brake hangers etc) and painting the chassis and wheels, so that you don’t have to take it all apart again.

It’s worth rounding off the ends of the axles a little bit, so that’s there’s less likelihood of cutting the wires when the axles are pushed home.

There are several devices on the market to aid quartering of the wheels - I use the tried and tested method of aligning spokes visually, followed by trial and error. I usually start with the driven axle, and then add the coupling rods, but only fitting the crankpin bushes to the driven axle and an adjacent one, adjusting that axle, and then fitting the third pair of bushes, and adjusting the third axle. Hopefully this should give a freely running chassis. The photo shows the first test on a Bachrus rolling road system. It works!
